1963-72 Chevy C10 Boyd Aluminum Fuel Tank, Bed Fill, Non-EFI
Product Number: 14001
Approx 19 Gallons
1963-72 Chevy C10

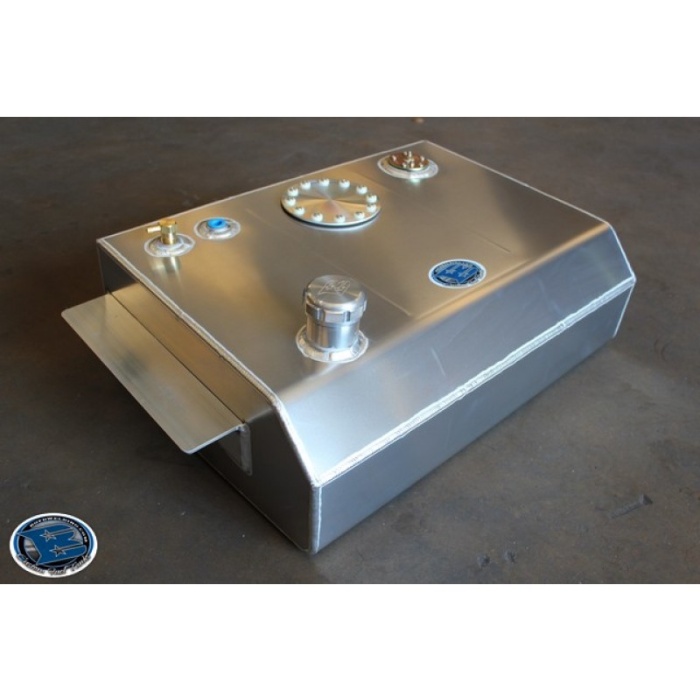

* Shown With Optional Rollover Vent and Sending Unit Installed.
-Tank Dimensions: 26.5 x 19 x 10
- Tank Material: .125 Aluminum
- 2" Bed Fill, 3" tall
- 1/2" NPT Vent
- 3/8" NPT Return
-3/8" NPT Draw
- 3 Baffles
-Approx 19 Gallons
- This tank is a NON-EFI but Boyd Welding has constructed the tank so that you can upgrade to the in-tank EFI system in the future.
Frequently Asked Questions:
Q: How Far down are the mounting tabs?
A: 3" down from the top of the tank
Q: How Tall is the fill neck?
A: The fill neck is approx 3" tall.
Q: Are there Baffles in the Tank?
A: Yes, There are 3 baffles in the tank.
Q: What is the Roll Over Safety Vent? Do i need it?
A: The Rollover Safety Vent is a simple ball check valve device that will allow the tank to vent when in the normal operating position. In the event of an accident causing a rollover the ball will drop and block off the vent port so that fuel does not leak out. For safety I would always recommend purchasing the Rollover Safety vent option.
Q: I Currently have a carbureted engine but may want to go EFI in the future. Can i upgrade this tank to EFI?
A: Yes, We have designed our tank with the EFI provision and baffling to allow you to upgrade to EFI using our Aeromotive in-tank pump system. All you will need to purchase is the pump system, remove the cover plate and bolt in the pump system using the same hardware. Quick note: if you are considering making a move to EFI soon you will save $50.00 by purchasing the complete EFI Tank.
Q: Will this tank fit my 63-66?
A: Yes, the 63-66 utilizes the same framerails. Many customers have sucessfully used this tank for those year ranges.
Q: I have a Blazer, can i use this tank?
A: Many customers have sucessfully installed the side fill tank into their blazers however, i am unsure of the scope of work to make it happen.
