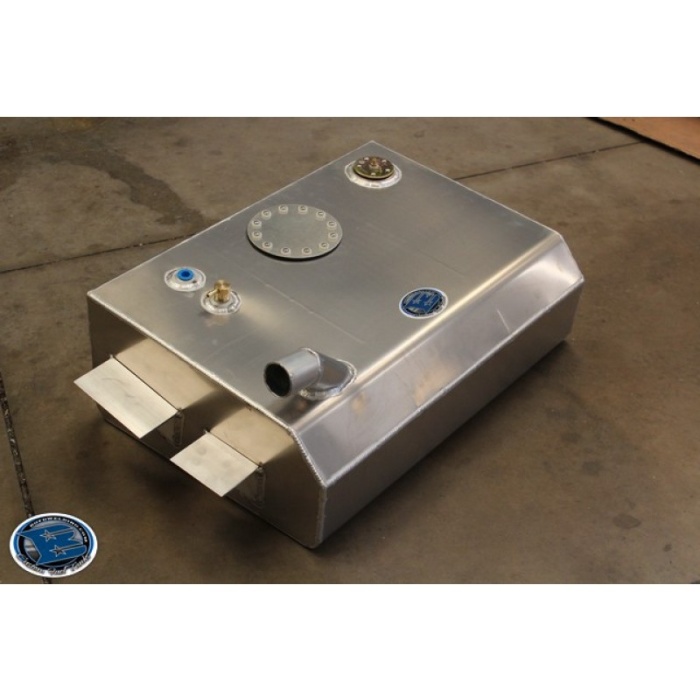

1973-87 Chevy C10 Boyd Aluminum Fuel Tank, Side Fill, EFI Aeromotive Stealth 340 Pump
Product Number: 14041
Approx 19 Gallons
1973-87 Chevy C10
Aeromotive In-Tank Pump
-Tank Dimensions: 26.5 x 19 x 10
- Tank Material: .125 Aluminum
- 2" OD Side Fill, 3.5" Tall
- 1/2" NPT Vent
- 3/8" NPT Return
- #6 ORB Female Pump Outlet
-3/8" NPT Drain
- 3 Baffles
- In-Tank Aeromotive Stealth 340 Pump included
- Approx 19 Gallons
Frequently Asked Questions:
Q: How Far down are the mounting tabs?
A: 3" down from the top of the tank
Q: How Tall is the fill neck?
A: The fill neck is approx 3.5" tall.
Q: Are there Baffles in the Tank?
A: Yes, There are 3 baffles in the tank.
Q: What is the Roll Over Safety Vent? Do i need it?
A: The Rollover Safety Vent is a simple ball check valve device that will allow the tank to vent when in the normal operating position. In the event of an accident causing a rollover the ball will drop and block off the vent port so that fuel does not leak out. For safety I would always recommend purchasing the Rollover Safety vent option.
