Boyd Welding Aeromotive Adapter Plate

Material = CNC Machined 6061-T6
OD= 6.00"
ID= 3.510"
Height = 0.500"
Installed height without pump = 0.625"
Bolt Circle A (BW EFI) = x12 @ 5.00" BCL
Bolt Circle B (Aeromotive) = x10 10-32 @ 4.00" BCL

This CNC machined aluminum adater will allow you to adapt any Aeromotive phantom, A1000 or Eliminator in tank pump that utilizes the 10 bolt pattern to the Boyd Welding 12 bolt pattern.

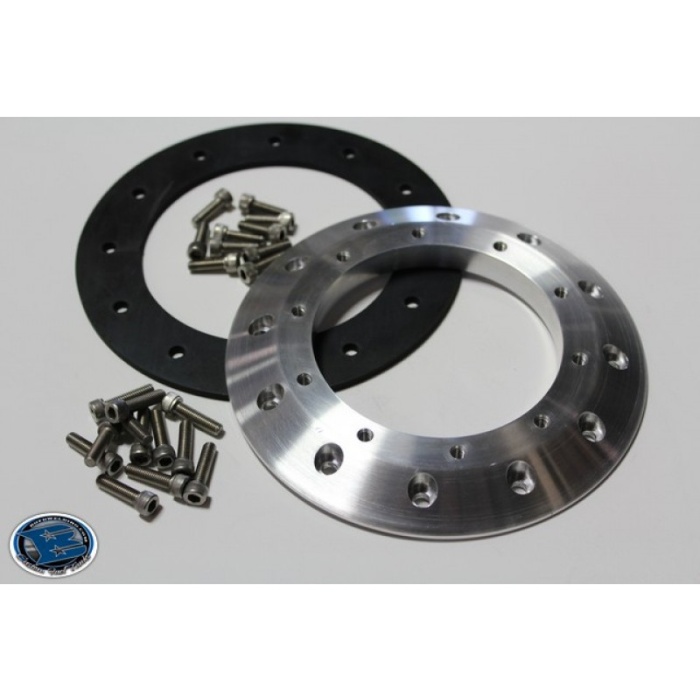

Kit Includes:
1) CNC Machined Adapter Plate
1) BW EFI Buna Gasket
12) 10-32 1" Stanless Screws (BW Pattern)
10) 10-32 3/4" Stainlss Screws ( Aeromotive Pattern)


You will use the gasket and nylon washers that was supplied with the aeromotive pump you purchased.
Do not try to use the screws supplied with Aeromotive pumps.
