Boyd Welding Bed Floor Fill Kit

Cap:
- Material = 6061 CNC Machined Aluminum
- Threads = 11.5" TPI
- Vented= NO
- Lanyard = NO
- Gasket = Buna O-ring

Neck:
- Material= 6061 CNC Machined Aluminum
- Threads= 11.5"
- OD = 4.975" Overall Flange
- ID = 3.300 ID
- Overall Height = 2.5"
- Bolt Hole = x6 .201 THRU 4.350" BCL


Installation:
-Bolt- IN
- Hole Cut Size = 3.760" MIN / 3.950" MAX (3-3/4" hole saw)
- Bolt hole Center = 4.350"

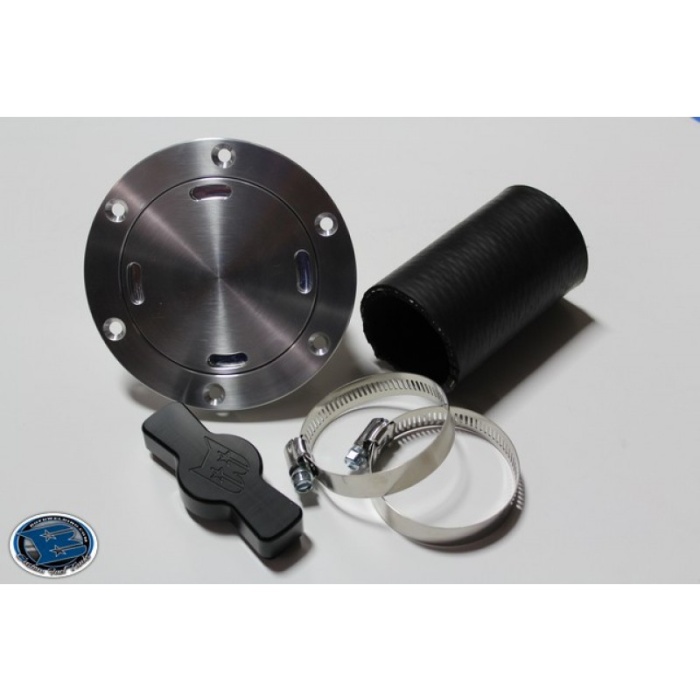

Kit Includes:
- 1) CNC Machined CAP W/ Oring and Delrin Key
- 1) CNC Machined  flush bed fill neck 2" RFH
- 1) 4" Long 2"ID Fuel Fill Hose
- 2) Stainless worm clamps
( Optional components based on selection below)
****Hardware to mount to your bed floor not included***** FAQ: Q: What size hose does this use?
A: The ribbed part of this neck is 2" so you will need to purchase 2" ID Fuel fill hose. We sell this in 3' lengths
SKU# 37015
Q:I already purchased a bed fill C-10 tank with a Boyd cap, will this work with what I already have?
A: Yes, you will need to select "Yes" below so we can provide extra parts in this kit to adapt the Flush Bed fill to the threaded neck. The procedure to make this work is outlined in the instructions provided.
