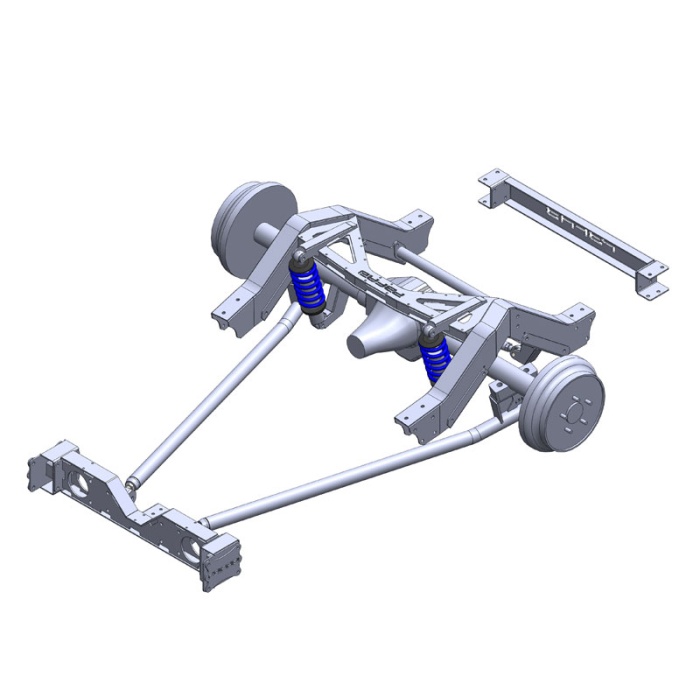

Porterbuilt 1963-72 C10 Rear Dropmember - Level 2 Coilover

1963-72 Dropmember Level 2 Rear Coilover

The Porterbuilt Dropmember sets the standard of quality and precision in the C10 suspension market. The Dropmember Level 2 Rear is a modular suspension system designed to replace the factory components and improve ride quality, performance, aesthetics, and strength. It is available in a trailing arm configuration. Ride height measures approx. 5-6” when running a 30” tall tire.

Designed to be paired with the Porterbuilt Dropmember Level 2 Front.

Advantages

• Revised suspension geometry for improved performance and ride quality
• Added ground clearance over factory components

Specs

When running a 30” tall tire, the Level 2 Rear ride height is approximately 5-6" off the ground.

Compatible with both long and short wheel base trucks.

We recommend no wider than a 12" wheel.

Does NOT come powdercoated. All parts come raw.

Designed to be paired with our Dropmember Level 2 Front.

Kit Includes

• Trailing arm crossmember
• Trailing arms
• Modular bolt-in notch assembly
• Coilover mounting brackets
• Watts link
• Grade 8 Hardware

Upgrades & Add-on Items

• Coilovers
• Porterbuilt Rear Frame Crossmember, Tubular or Boxed
• Porterbuilt Inner Frame Stiffener

Options & Upgrades

Coilover Kits

Ridetech Handling Quality (“HQ”) Coilover Series - The HQ coil-over allows the driver to tune and adjust the shock performance and/or ride quality at the turn of a knob located on the shock body. The HQ series is a rebound single adjustable shock.

Ridetech Track Quality (“TQ”) Coilover Series - The TQ coilover has a single rebound adjustment and a DUAL stage [high speed and low speed] compression adjustment. It uses a remote reservoir that is connected with a 30" braided line for easy installation in a variety of installation applications.

Rear Frame Crossmember

Porterbuilt Tubular Rear Frame Crossmember is an ideal replacement for that factory crossmember. Built from thick wall tubing and 3/16" steel this rear frame crossmember adds some strength between the rear frame rails. It fits perfect with a rear mounted fuel tank from Boyd!

Also available in a "boxed" version, fabricated from 3/16" steel featuring the PBFAB logo.

Inner Frame Stiffener

Porterbuilt's new Boxed Inner Frame Stiffener is designed to strengthen and reinforce your frame and is an ideal solution for LS swapped trucks. The IFS incorporates adjustable transmission and trailing arm mounts to make installation easy.
