GM LS Swap Oil Pan - 1955-1987 GM/Muscle Car/Classic Car/Trucks Cars requiring more clearance at the front half of the oil pan

Holley's new LS Retro-fit Engine Oil Pan provides maximum clearance to the chassis and ground, plus provides an OE (Original Equipment) style fitment for durability and proper sealing.

Distance between the Oil Pickup and the bottom of the pan is .378 Inch.
Distance between Pickup Tube and the side of the oil pan is 0.136 Inch.

Features:

• Designed for LS engine retrofit installations in GM muscle/classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan.
• Perfect forDropmember equipped trucks.
• NOTE – Oil pan #302-2 may not be used with LS7 engines or “stroker” engines greater than 3.62”.
• Can be used anywhere a GM F-Body oil pan can be used
• New applications will be added as testing confirms fitment
• Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments
• Traditional high-quality cast aluminum appearance with clean exterior styling.
• Provides maximum clearance for vehicles where the steering linkage is behind the engine crossmember.
• Cast and machined aluminum

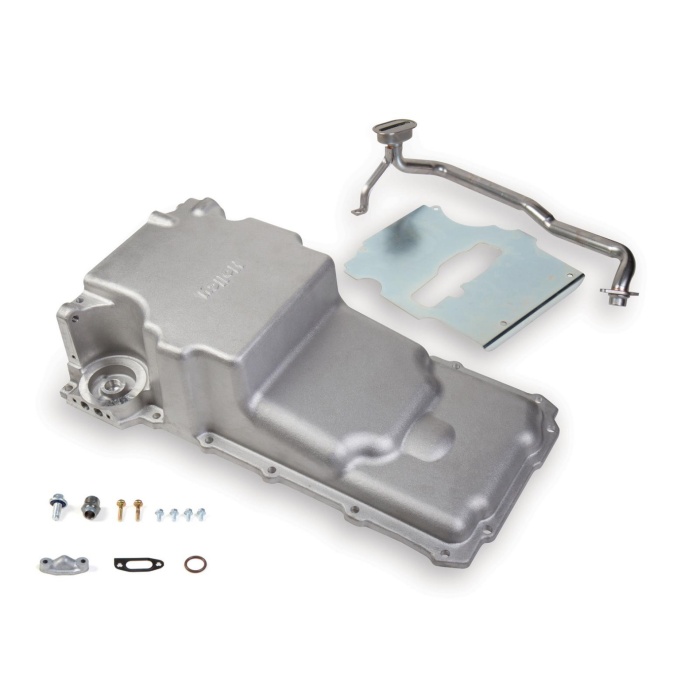

• Complete kit includes sump baffle, OE style pick-up tube, sump plug, oil filter stud, oil passage cover, etc.
